The power behind
the charge.
A hybrid LTO + LFP architecture delivering continuous high-current output
eliminating ripple & maximizing fast-charge throughput
300 kW
Peak Output
300 kWh
Total Energy
6 – 7
EVs per deployment
833 V
HVDC bus voltage
Fusioncore Specifications
LTO 800V HVDC Rack
High Power
Nominal Voltage833 V
Capacity35 kWh
Max Power300 kW
Max Discharge400 A
Config336S2P · 42U rack
LFP 800V HVDC Rack
High Energy
Capacity261 kWh
AC Recharge125 kW · 2.5 h
Nominal Frequency50/60 Hz
Frequency Range+/- 2.5 Hz
Config260S1P
Deployment Scenarios
Mobile fast-charge truck
Load the full system on top of an 8-ton vehicle. Charges 6–7 EVs per trip. Two vehicles simultaneously.
Fixed ESS — DC Coupled
LFP + LTO + 320 kW DC Charger(s). Bridges grid feeder shortfalls without infrastructure upgrades.
Ripple-free power delivery
LTO provides stable continuous high-current output, eliminating waveform ripple during peak DC fast-charge cycles.

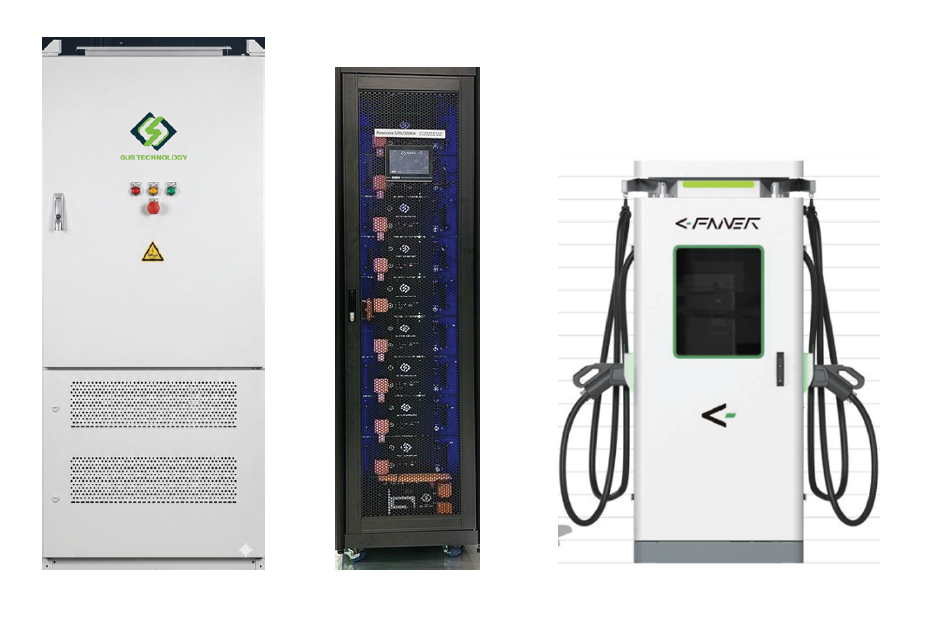

DC-Coupled Architecture
High Energy
LFP
261 kWh · 125 kW
High Power
LTO
35 kWh · 300 kW
DC Bus · 833 V
DC/DC Charger
180–320 kW
DC/DC Charger
180–320 kW
simultaneous dual-vehicle charging
